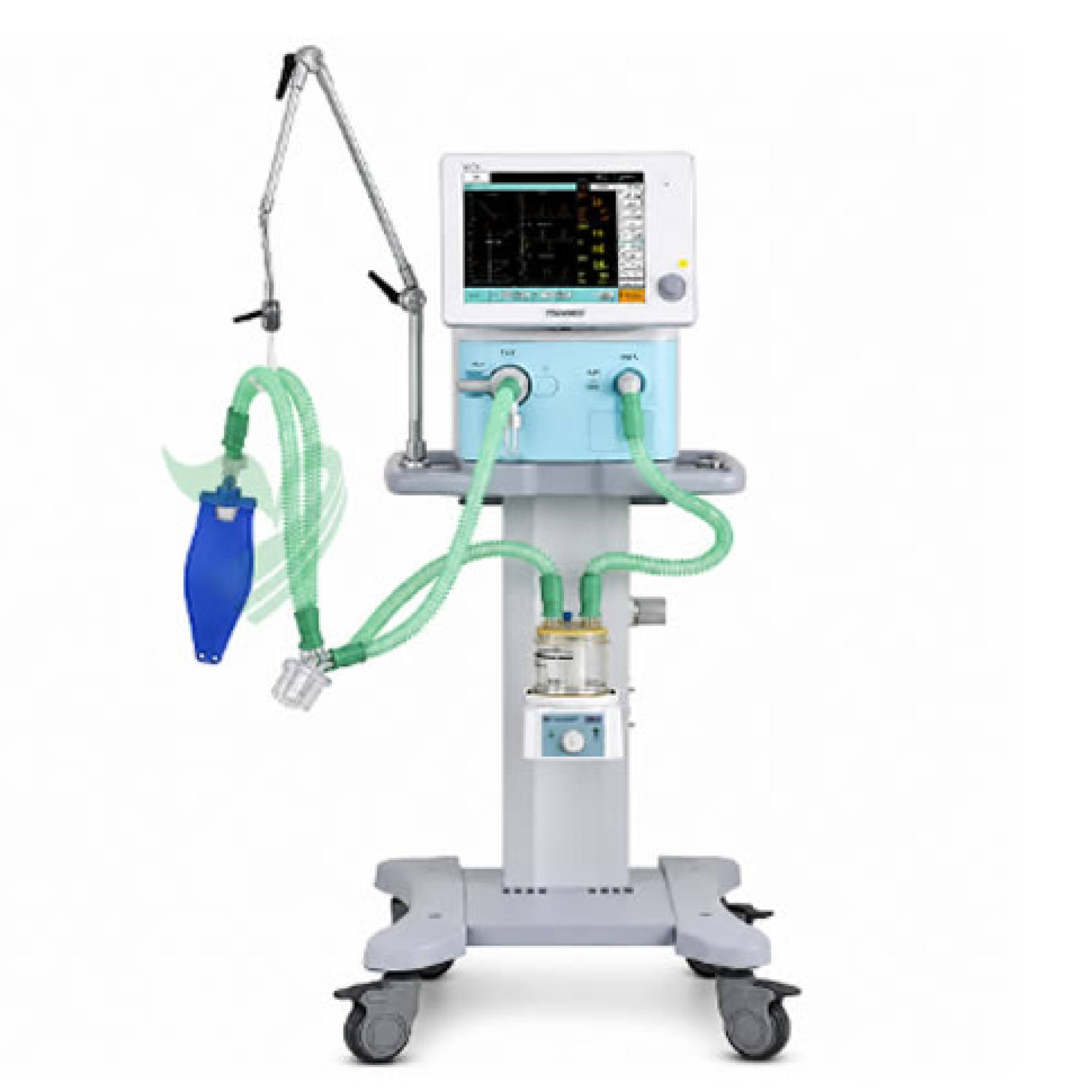

Ventilator VG70

The VG70 Trolley Turbine Ventilator is a compact, high-performance ICU ventilator designed to provide comprehensive invasive and non-invasive respiratory support. Its integrated turbine system eliminates the need for an external air compressor, making it suitable for flexible intra-hospital use. The VG70 can be configured on a trolley, bed, or ceiling pendant and features a 12.1-inch TFT colour touchscreen for intuitive operation and monitoring.

Key Features
• Comprehensive ICU ventilation with invasive and non-invasive ventilation capabilities.
• Integrated turbine system with no external air compressor required.
• Large-capacity battery for enhanced mobility within the hospital.
• 12.1-inch TFT colour touchscreen with clear ventilation monitoring.
• Multiple ventilation modes including VCV, PCV, SIMV, CPAP, PSV, NIV and STANDBY.
• Optional PRVC and BIVENT/APRV ventilation modes.
• Tidal volume range of 20–2000 mL.
• Respiratory rate range of 1–80 breaths/min.
• Adjustable PEEP from 0–35 cmH₂O.
•Adjustable FiO₂ from 21–100%.
• Built-in flow sensor with a non-consumable design.
• Metal-based, autoclavable and heated exhalation valve.
• Advanced monitoring of FiO₂, EtCO₂, compliance, resistance, minute-volume leakage and other respiratory parameters.
• Displays pressure-volume, pressure-flow and flow-volume loops.
• Apnea ventilation, pressure/flow triggering and automatic tube compensation.
• Smart suction, nebulization and lung recruitment functions.
• Comprehensive audible and visual alarm system for pressure, volume, oxygen concentration, apnea, disconnection, gas supply and battery failure.
• USB port and upgradeable ventilation software.
• Compact design suitable for ICU and intra-hospital mobility.

Technical Specifications
Specification VG70
Model: VG70
Type: Trolley Turbine ICU Ventilator
Screen: 12.1" TFT Colour Touchscreen
Tidal Volume: 20–2000 mL
Respiratory Rate: 1–80 bpm
Inspiratory Flow: Up to 180 L/min (adult)
Inspiratory Pressure: 5–70 cmH₂O
PEEP: 0–35 cmH₂O
FiO₂ 21–100%
Ratio: 1:10–4:1
Weight Approx: 17 kg
Dimensions: 375 × 395 × 430 mm
